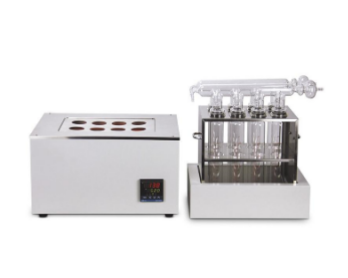

Digital infrared digestive furnace- KDN-04/08/20C


#KDN-04/08/20C Digital infrared digestive furnace


Ø Type C digestive furnace adopts quartz infrared heating pipe, the radiation is primary and the conduction is auxiliary; short heating time, high efficiency.
Ø Machine box adopts specially made plastic spray steel; working area adopts stainless steel materials, has good corrosion resistance.
Ø Double-shell design, double thermal insulation effect with air thermal insulation layer and aluminum silicate thermal insulation layer
Ø Has multiple protection: overpressure, over current, overheating
Ø Small and beautiful, easy to operate, user-friendly.
Ø Holes with 4, 8, 20

Technical parameters

Name of Item Model Model Model
Sample holes 4 8 20
Heating Module Material Infrared
Temperature control mode Digital
Temperature control range room temperature-600ºC
Temperature control accuracy ±1ºC
Measurement range 0.1mgN-200mgN (mg nitrogen)
Digest Time 60-90 min/batch (according to sample quantity)
Digestive pipe capacity 300ml
Power  1KW 1.5KW 2.5KW
Operating Voltage AC220V/50Hz
