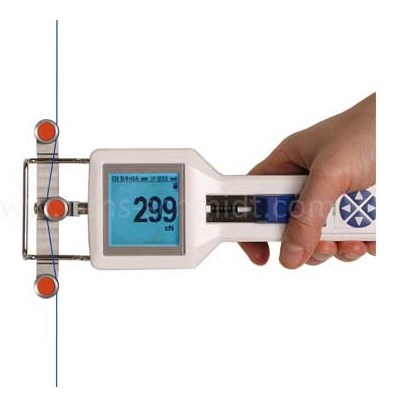

Yarn tension meter _ETPX 200


Special Features

  • Tension meter ETPB and ETPX with ceramic pins mounted on long shafts to reach into tightest places Hand-held instrument with non-rotating ceramic pins (outer pins V-grooved) for line speed max. 6000 m/min
  • Coloured, backlight TFT display with 3 different display modes –
  • The display rotates in 90° steps for better reading Automatic “Zero-Setting” in each measuring position using a special sensor technique
    1. numeric –
    2. numeric with live bargraph
    3. numeric with graph (time-tension
  • Selectable units of measurement: cN, g, N and lb
  • Very high data sampling rate (internal 1 kHz)
  • Storage of MIN, MAX, last reading, average and standard deviation per measuring interval
  • User-set MIN and MAX alarms with indication of TFT display if reading is out of limits
  • Adjustable electronic damping for better reading when tension fluctuates
  • 3 separate calibration material memory locations for custom calibrations
  • Calibration adjustment for fine tuning of the calibration if material differs from the used calibration material
  • Menu set-up in English or German language

Standard Features

  • Rugged aluminium housing
  • LiPo accumulator (approx. 20 hours continuous operation) with AC adapter
  • CE certified, interference resistant against static electrifications
  • Certificate of Compliance with the order 2.1 according EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Technical Specification

  • Measuring Range : 2.0 – 200.0 cN
  • Resolution : 0.1 cN
  • Measuring Head Width* mm : 22 mm
  • SCHMIDT Calibration Material** : PA: 0.20 mm Ø
