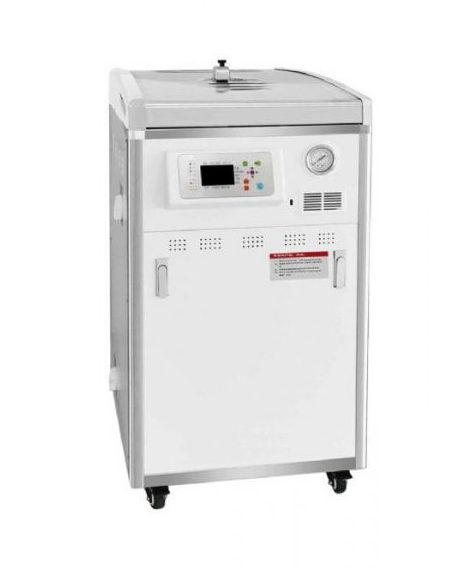

Vertical pressure steam sterilizer, ST-V series


#ST-V series vertical pressure steam sterilizer/ ST-V series autoclave


Intelligent microcomputer control system:

Using LED digital control system, after sterilization finished, sterilizer will automatic alarm and shut down.

Electric Interlock device:

The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.

The structure of cover’s opening:

Using 8 rotary extendable stick to improve sealing and safety performance.

Preset program:

Can preset 4 fixed program for convenient operation each time.

Memory storage system:

Store the last operation program so convenient next operation.

Exhaust steam control:

After sterilization, exhaust steam valve automatically work and exhaust inner circulation (apply to auto exhaust)


Product name: Portable pressure steam sterilizer/ Autoclave
Model: ST-V-40(A) ST-V-60(A) ST-V-80(A)
Brand: Taisitelab
Origin: USA
Assembling country: China
Configuration: Semi-automatic control (mode with a have auto exhaust function)
The main material: Stainless steel
Volume/ Gross weight: 88/94/101kg(40/60/80L) 91/97/105kg(40/60/80L) 96/104/112kg(40/60/80L)
Voltage/Power: 220V/3.5Kw 220V/3.5Kw 220V/3.5Kw
Packing size: (LxWxH)mm: 660x800x990 (40L) 660x800x1100 (60L) 6600x800x1250 (80L)
Product size: (LxWxH)mm: 560x630x880 (40L) 560x630x1000 (60L) 560x630x1150 (80L)
Sterilization chamber volume


370×380 (40L) 370×560 (60L) 270×750  (80L)
Basket size (DxH)mm: 350×190 (40L) 350×360 (60L) 350×190&350×360 (80L)
Time setting range: 0-99h 0-99h 0-99h
Rated working pressure: 0.217Mpa 0.217Mpa 0.217Mpa
Sterilization temperature setting range : 50~134°C 50~134°C 50~134°C
