Air Volume Meter – BK-AVM-1 Series, ESMC, BIOBASE, China

Air Volume Meter – BK-AVM-1 Series, ESMC, BIOBASE, China

0.00৳

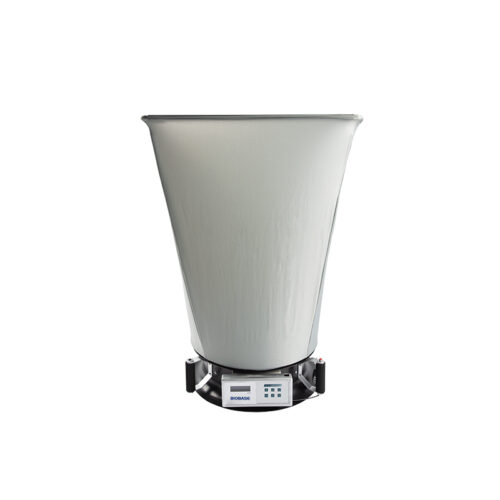

Air Volume Meter - BK-AVM-1/BK-AVM-1S
  • Model: BK-AVM-1 & BK-AVM-1S
  • Brand: BIOBASE
  • Product origin: CHINA

Description ：
Air volume meter is widely used in HVAC, purification technology and other industries for sealing and pipe air volume, temperature, humidity measurement.

Features:

  • Multi-point and multi-time automatic detection of wind pressure, correct, fast and simple.
  • Single display measurement, can also be multi-tuyere air volume computer centralized display.
  • Hole plate standard wind tunnel device for multi-point air volume correction.
  • LCD display, with external interface, and BK-AVM-1S has a touch screen interface.

Notice: Do not measure corrosive gases, gases containing metal particles, and gases containing large particles and high concentration of dust.

Technical Parameters：

Model BK-AVM-1 BK-AVM-1S
Air Volume



 Range 150～3500m³/h 50-2500m³/h
Accuracy ±5%(F•S)
Resolution 1 m³/h
Temp measurement Range / 0～60℃
Accuracy / ±0.5℃
Resolution / 0.1℃
Humidity measurement Range / 0～100%RH
Accuracy / ±0.1%RH
Resolution / 0.1%RH
Power Supply



 DC 7.4V/1800mA
AC 220V±10% 50Hz±2Hz
Storage Up to 999 test results Up to 5000 test results
Standard Printer Bluetooth printer
Operating Environment
  • Temperature: 5℃～35℃
  • Relative Humidity: 30%～70%RH
Storage Environment
  • Temperature: -30℃～45℃
  • Relative Humidity: 0～70%RH
Air Flow Hood Standard: 570*570mm, 830*830mm
Package Size 750*750*180mm
Gross Weight 10kg

Images are reference only. Actual product may be different.
