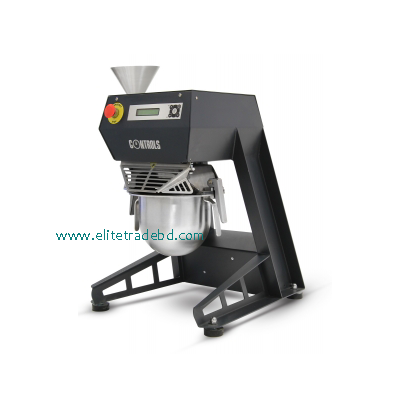

Automatic programmable mortar mixers

MAIN FEATURES

• Complete with stainless steel mixing bowl, EN beater and open-type sand hopper
• Machine operated by a dedicated and easy to use in-built software
• Digital mixer, user friendly interface with functional alphanumeric display 2×16 characters and keybord
• The pre-defined procedures guide the operator in mixing operations according to Standards allowing manual introduction of sand by the top filling hopper
• Continuously variable speed (VFD Variable frequency drive technology)
• Either Standard or user defined speeds can be easily selected (also adjustable during mixing)
• Blade/Planetary speeds adjustable from 30/13 to 380/165 rpm, depending on the mix consistency
• Quick bowl mounting device
• 3-points bowl supporting system allowing precise adjustment of the gap between bowl and beater
• Possibility to create and recall user defined mixing procedures
• Micro-switch preventing the machine to be started without bowl, and emergency stop button
• Conforming to CE requirements

TECHNICALSPECIFICATIONS

• Planetary speeds: 62 and 125 rpm or user defined
• Beater speed: 140 and 285 rpm or user defined
• Bowl capacity: 5 litres
• Alphanumeric display 2 x 16 characters
• Power: 370 W
• Overall dimensions: 465x540x620 mm (lxd x h)
• Weight: 35 kg (approx.)
