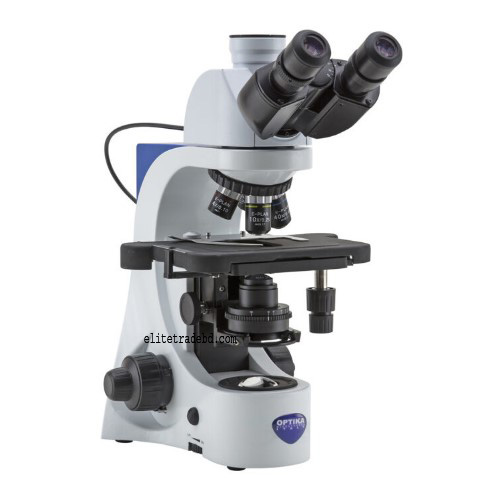

Binocular head microscope B-382PLi-ALC Optika Italy

Binocular head microscope B-382PLi-ALC Optika Italy

185,000.00৳

Microscope Binocular Head B-382PLi-ALC, Optika, Italy
Binocular, 30° inclined, 360° rotating
Eyepiece: WF10x/20 mm
Model: B-382PLi-ALC
Brand: OPTIKA
Country: ITALY
Brightfield binocular microscope with IOS N-PLAN (Infinity Corrected) objectives, rackless stage and combining the exclusive X-LED3 with ALC (Automatic Light Control) for great-looking, rich and high-quality view.
Observation mode: Brightfield.
Head: Binocular, 30° inclined, 360° rotating (when ALC cable is unplugged).
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS N-PLAN 4x/0.10 IOS N-PLAN 10x/0.25
IOS N-PLAN 40x/0.65 IOS N-PLAN 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm,
78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism
with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm,
focusable and centerable.
Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED
(6,300K) and brightness control. ALC system.
Multi-plug 100-240Vac/6Vdc external power supply
