By-pass Airflow Fume Hood, FHB series, ESMC, Humanlab, Korea

0.00৳

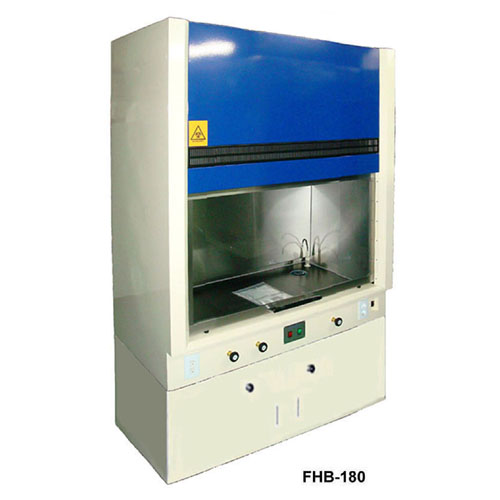

By-pass Fume Hood, FHB series

Features

These fume hoods unitize by-pass airflow design to assure safe continuous ventilation. (Class I)
Application should limit long-term exposure to harsh solvents and highly-corrosive vapors.
Include tempered safety glass counterbalanced sash and ceramic work table.
Built-in blower, and spark-proof configurations
Blower can be mounted any of three way – within the hood, above the hood, or on the roof.

Specifications

Model		FHB-120	FHB-150	FHB-180
Air volume (CMM)		9-18	12-23	14-29
Work area (WxL)		1030x650mm	1330×650 mm	1630×650 mm
Face velocity		0.25 – 0.5 m/sec
Material	Interior	Stainless steel
	Exterior	Steel sheet
	Worktop	Ceramite board
	Window	Safety glass 5t
Illuminator		Incandescent lamp/Option: FL., Flame proof
Utility device		Air, N2, Water cock & 110/220V receptacle
Power source		220VAC, 50/60Hz, Single phase
Overall (WxDxH)		120x80x230cm	150x80x230 cm	180x80x230 cm
Weight(Kg)		270	320	370
Supplier		Elite Scientific & Meditech Co.
Visit us		www.elitetradebd.com

Images are reference only. Actual product may be different.
