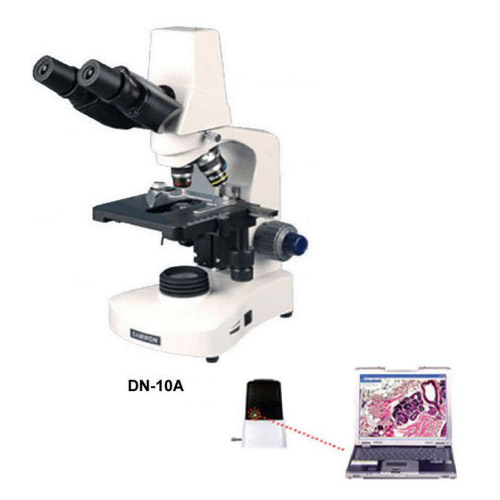

Digital camera microscope DN series

Features

  • Simple design and convenience to handle
  • Transferable video and digital signal
  • Built-in A/D converter
  • Monitoring the image to connect to port
Model DN-20A DN-10A
Sensor C-MOS sensor Magnification: 40-1000X
Image device C-MOS chip Eyepiece: WF10X/18
Digital resolution 1300000 Pixels 1300000 Pixels
Camera system Outside digital camera system with C-mount Inside digital camera system
White balance Automatic
B.L.C Automatic
Data transfer adapter USB 2.0
Operating system Windows 98, ME, 200, XP
Image driving software Yes
Data formate Bmp, Jpg, avi (for recording)
Operation temperature -10°C to 70°C
Objective Sami-plan achromatic 4x,10x,40x(s), 100x(S, Oil) Achromatic 4x,10x,40x(S),100x (S, oil)
Stage Mechanical stage 140x140mm/75x50mm Mechanical stage 132x142mm (75×40)
Consider Abbe NA 1.25
Illumination Halogen lamp 6V, 20W 3W LED lamp, light controller

Images are reference only. Actual product may be different.
