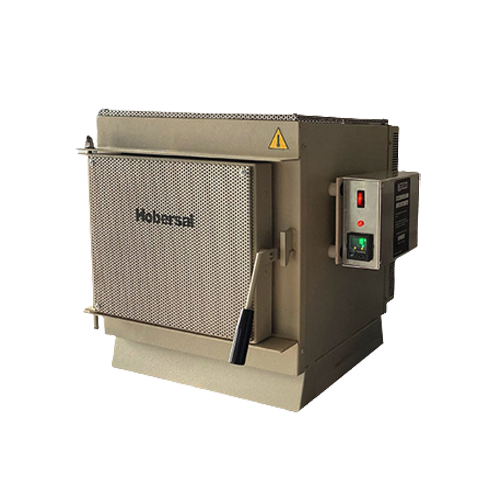

Economy chamber furnaces, HD Series, ESMC, Hobersal, Spain

Economy chamber furnaces, HD Series, ESMC, Hobersal, Spain

0.00৳

Economy chamber furnace, HD Series up to 1200 ºC, 1.6 liters to 30 liters

  • Model: HD Series
  • Brand: Hobersal
  • Origin: Spain

Muffle Furnace

FLEX SERIES

  • Temperature 1200 ºC
  • Drop down door or side door
  • 2 o 3 heating plates with Kanthal AF
  • Low thermal mass insulation
  • Built with low density ceramic bricks and ceramic fiber
  • Double isolation chamber
  • Outside casing in metal sheet painted (inox. Optional)
  • Ventilated via rear by ceramic chimney
  • Thermocouple type K
  • Compact and lightweight furnace

Furnace control:

  • Under the furnace / Side furnace
  • Solid state relay
  • Regulation PAD. Digital control. Microprocessor. Alarm.
  • Regulation PA. Analogical control
  • Safety Shut-off
  • Thermocouple break shut-off
  • Manufactured under the CE

Accessories

  • Ceramic tray
  • Refractory steel tray
  • Smoke chimney
  • Forced smoke chimney
  • Security class II. Over-temperature protection
  • Inlet gas entry
  • Flow meter box

Optional regulation

  • 1 program 8 steps (Programmer)
  • 4 program 15 steps (Programmer)
  • Eurotherm EPC series (Ramp Programmer + software Itools) 10 Progs / 25 steps – via Ethernet (Curves downloadable in CSV-Excel)

TECHNICAL DESCRIPTION

Model HD-200 PAD HD200 PA HD150 PAD HD150 PA HD190 PAD HD 190 PA HD-230 PAD HD-230 PA HD-230L PAD
Code 970010411 970010411 960020212 960010212     940020411 940010411
Inner Dimensions

(HxWxD) (mm)

 120x150x220 120x150x220 80x130x150 80x130x150 150x200x200 150x200x200 160x200x240 160x200x240 160x200x240
Outer Dimensions

(HxWxD) (mm)

 450x350x430 450x350x430 430x300x430 430x300x430 400x500x500 400x500x500 490x430x450 490x430x450 490x430x450
Volume (Ltr) 3.6 3.6 1.6 1.6 6 6 7.6 7.6 7.6
Power (Kw) 1.2 1.2 1.7 1.7 2 2 3.8 3.8 3.8
Voltage (V) 220 220 220 220 220 220 220 220 220
Heating Zones 2 2 3 3 2 2 3 3 3
Max. Temp. ºC 1100ºC 1100ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC
Max. Temp. ºC Limited Time 1000ºC 1000ºC 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC
Max. Temp. ºC Continuous —– —– —– —– —– —– —– —– —–
Net Weight 30 30 30 30 29 29 45 45 45
Thermocouple K K K K K K K K K
Control Type Digital Digital Digital Analog Digital Analog Digital Analog Digital
Heating Elements Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire



Model HD-230L PA HD-280 PAD HD-280 PA HD-330 PAD HD-330 PA HD-430 PA HD-430 PA HD-530 PAD HD-530 PA
Code       500021812 500011812 490022112 490012112
Inner Dimensions

(H x W x D) (mm)

 160x200x240 200x250x260 200x250x260 230x260x300 230x260x300 260x310x300 260x310x300 300x310x300 300x310x300
Outer Dimensions

(H x W x D) (mm)

 490x430x450 490x430x450 490x430x450 600x600x600 600x600x600 650x650x600 650x650x600 700x750x600 700x750x600
Volume (Ltr) 7.6 12 12 18 18 24 24 30 30
Power (Kw) 3.8 3.8 3.8 4.5 4.5 4.5 4.5 3.5 3.5
Voltage (V) 220 220 220 220 220 220 220 220 220
Heating Zones 3 2 2 2 2 3 3 3 3
Max. Temp. ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC 1200ºC
Max. Temp. ºC Limited Time 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC 1100ºC
Max. Temp. ºC Continuous —– —– —– —– —– —– —– —– —–
Net Weight 45 45 45 60 60 75 75 —– —–
Thermocouple K K K K K K K K K
Control Type Analog Digital Analog Digital Analog Digital Analog Digital Analog
Heating Elements Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire Kanthal Wire

Images are reference only. Actual product may be different.
