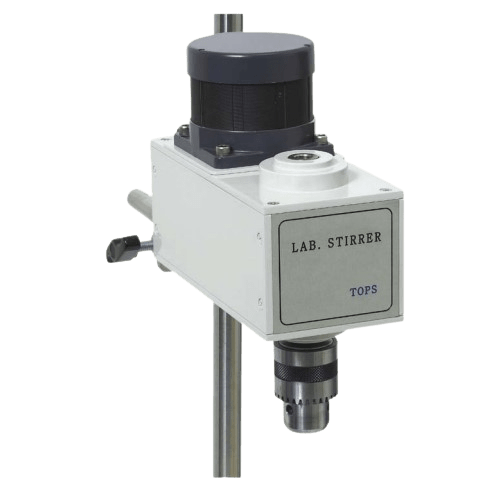

Electronic overhead stirrers BL2015D, 80L, 70~1500rpm
0.00৳
Electronic Overhead stirrers (Speed controller Separated)
- Brushless DC
- 50,000mPas (medium), 80L, 70~1500rpm
- Model : BL2015D
- Brand : Mtops
- Origin : Korea
Description
Others models of products: BL2015, BL2015D/BL2010, BL2010D
- BL2015, BL2015D: Stirrer for the middle and low viscosity at the experiment room and pilot plant by strong power, stirring up to 80L, the max. torque of 13Kg·cm(127Nm) and stirring speed range of 70-1500rpm
- BL2010, BL2010D: Stirrer for the middle and low viscosity materials by strong power, stirring up to 100L, in the basis of water, the max. torque of 19.5Kg·cm(191Nm) and stirring speed range of 50-100rpm
Speed display (Digital):
- Digital indicating function
- Timer set-in function
- Function of the positive/reverse rotation, automatic positive/reverse rotating direction set-in mode
- Excellent stirring effect when using the automatic positive/reverse rotation set-in
Features
- Sparkless, adapting durable and excellent brushless DC motor
- Feedback control system maintains the accurate speed and uniform torque
- No speed variation in the rating torque even though changing viscosity
- Torque indicating lamp by changing viscosity
- Smooth acceleration allows unit to reach set rpm without spillage
- Small, lightweight and air-tight construction with less noise and designed in safety
- Convenient, up and down control of the stirring shaft
- Electronic safety circuit
- Speed indicating (Scale): Torque indicating lamp
- Narrow width designed for the effective application
- Protection function on the overloaded torque
Speed display (Digital):
- Digital indicating function
- Timer set-in function
- Function of the positive/reverse rotation, automatic positive/reverse rotating direction set-in mode
- Excellent stirring effect when using the automatic positive/reverse rotation set-in
Specifications
| Model | BL2015 | BL2015D | BL2010 | BL2010D |
| Stirring capacity (H2O) | 80L | 100L | ||
| Viscosity (Max.) | 50,000mPas (medium) | 100,000mPas (medium, high) | ||
| Motor (output) | Brushless DC motor 200W | Brushless DC motor 200W | ||
| Torque (Max.) | 13kg·cm (127Ncm) | 19.5kg·cm (191Ncm) | ||
| Speed range | 70~1500rpm | 50~1000rpm | ||
| Speed controller | Feedback control | Feedback control | ||
| Speed display | scale | Digital | scale | Digital |
| Rotations | – | 1. Right 2. Left (Operation) 3. Auto reverse (Reverse time setting |
– | 1. Right 2. Left (Operation) 3. Auto reverse (Reverse time setting) |
| Timer | – | 99hr 59min | – | 99hr 59min |
| Chuck range | Ø1~10mm | Ø1~10mm | ||
| Dimensions (W×D×H) | 100×220×168mm | 100×220×168mm | ||
| Weight | 4.7Kg | 4.7Kg | ||
| Electrical supply | 220V 50/60Hz | 220V 50/60Hz | ||
Warranty: 01 (One) year warranty from the date of installation.
Images are reference only. Actual product may be different.
