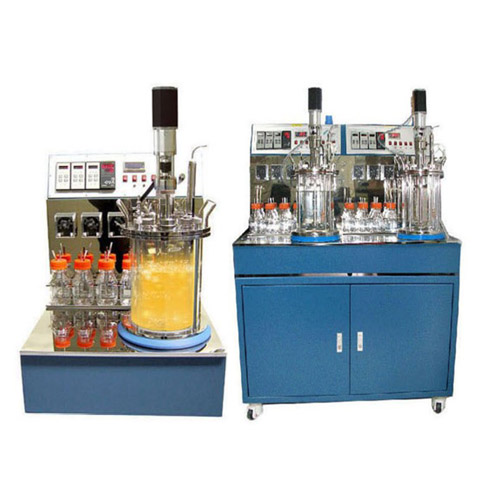

Fermenter, INO Series, ESMC, Humanlab, Korea

Pilot Sccale Fermenter, INOBIO Series

Features

• These fermentation package, featuring bioreactor, include everything you
• need to get fermentation process started such parameter as DO, pH, temperature and foam
• no need to spend the selecting components
• The working volume are available 3l,5l & 7l for cell culture or microbial
• including bacteria, yeast, insect, fungi and plant cells

Specifications

Mode	Model	INO-05F	INO-07F
Capacity	Total Vol.	5 Liter	7 Liter
	Working Vol.	3 Liter	5 Liter
Vessel	Pressure	Max. 2 Kg/cm2Operation: 1.5 Kg cm2
	Material	Pyrex glass + Stainless Steel
Temperature	Range	25 to 50°C±0.1°C
	Control	Digital temp. controller + PT Sensor
pH	Range	2 to 12 pH
	Control	Digital pH Controller+ pH Electrode
DO	Range	0 to 20 ppm (0 to 100%)
	Control	Digital DO controller + Polarographic
Agitation	Speed	0 to 1000 ppm
	Drive	AC motor 60W+2xImpeller
	Control	Speed Controller
Aeration	Flow rate	0.5 to 5 NI/min
	Sterilizing	130C/160 min
	Filter	99.9% efficiency PTFE filter element
Anti-Foam	System	Micro Tubing pump
	Control	Foam sensor + Pyrex glass bottle
Control	System	8 Channel On-line monitoring system
	Display	Graphic LCD Display
	Output	RS232 & Printer
Utility	Comp. air	2 Kg/cm2, 10L/min
	Electric Power	220VAC, 50/60Hz
Overall	[WxDxH] 720x650x660 [mm]/150 Kg

Vessel

• Material: Pyrex tube glass (Single wall) & Top & Bottom Plate (SS318L)

Aeration Unit

• Sterilizing temperature: 125C for 60 min
• Material of element: PTFE
• Filteration efficiency: 99.9%

Agitated speed control system

• Agitation speed is indicated & controlled by frequency inverter
• 220VAC, 50/60Hz, 0.37Kw, 50- 800 rpm

Temperature Control system

• Digital temperature indicating controller: up to ±50°C

 pH Control System

• Digital pH indicating controller with 4 digits display
• Measuring range: pH 2.00-12.00 +/-0.05

Dissolved Oxygen measuring system

• Digital DO indicating Controller with 4 digits display
• Measuring Range: 0.00-20.00 ppm or 0.0-100.0%

Anti-foam control system

• Digital anti-foam controller with 4 digits display
• Measuring range: 0-999.9 Count

PC monitoring system

• Hardware interface & software
• PC monitoring software

Images are reference only. Actual product may be different.
