Flow Table-Motorized with Counter

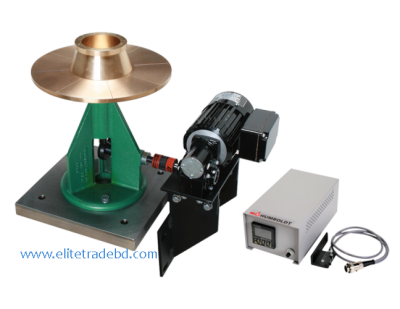

The Flow Table is used to determine the flow of hydraulic cement, mortars and cement pastes. A test specimen is molded on the flow table to a specified volume and shape. Then, with the mold removed, leaving the test specimen on the table. The flow table is dropped and raised (via a hand crank or optional motor) a specified number of cycles, after which the flow (or increase in average diameter of the specimen) is measured. Motorized flow table with 10″ (254mm) dia. cast-bronze table/platen and automatic digital counter. Motor stops automatically once pre-set number of drops is achieved. Includes heavy-duty table/platen assembly, standard H-3622 cast bronze, 2.75″ top dia. x 2″ high x 4″ bottom dia. cone mold, motor and H-3614B counter. Designed to be mounted to concrete mounting block.

The Flow Table, Motorized with Counter supports the following standards: ASTM C87, ASTM C109, ASTM C110, ASTM C185, ASTM C230, ASTM C243, ASTM C348, ASTM C593, AASHTO T71, AASHTO T106, AASHTO T137 and AASHTO T152
