Fluorescent Microscope, NSI Series, ESMC, Humanlab, Korea

Fluorescent Microscope, NSI Series, ESMC, Humanlab, Korea

0.00৳

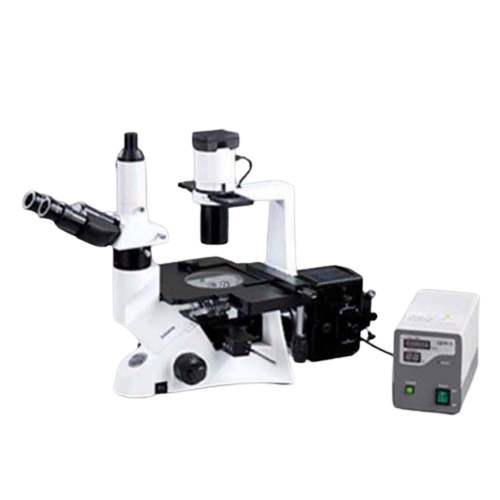

Florescent Microscope NSI Series, Humanlab, Korea

Features

  • Excellent Fluorescent image with high resolution fluorescent objectives
  • Protect the light leak with advanced lamp housing
  • – More stable power supply, digital display and timer

Specifications-

Model NSB-F80 NSI-F100
Magnification 40X-1000X 40X-400X
Eyepiece High-point, Extra wide field eyepiece EX10X/22
Objective Infinite plan achromatic 4X, 10X, 20X, 40X(S), 100X(S.oil) LWD ( long working distance)4X(18mm), 10X(10mm), 20x(5.1mm), 40X(2.6mm, Cover glass 1.2mm)
Nosepiece Quintuple Nosepiece
Head Compensation free trinocular head, Inclined at 30°, Interpupilary 48-75mm, Diopter adjustable
Stage Double layer mechanical stage 185x142mm, Moving range 75x55mm Plan stage 160x250mm, Glass insert, Auxiliary stage 70x180mm, Mechanical stage 120x78mm
Condenser Swing condenser N.A. 0.9/0.25 ELWD condenser N.A. 0.3, LWD 72mm
Transmitted Illumination External Illumination, Asperical collector, Halogen lamp 12V 30W Halogen lamp 6V 30W, Brightness adjustable
Reflected Illumination 100W HBO ultra Hi-voltage spherical mercury lamp
Reflected Light source Excitation Dichroic mirror Barrier filter
Blue excitation BP460~490 DM500 BAS520
Green excitation BP480~550 Dm570 BAS590
Protection Barrier Barrier to resist the ultraviolet light
Power supplier Power supplier NFP-1, 220V/110V interchangeable, Digital display
Options-
  • Ultra violate excitation filter & violet excitation filter
  • CCD camera system (CCD camera, C-mount adapter,
  • Power supply, Video cable, Video capture board)
  • Digital camera system (Digital camera, Relay lens with C-mount, Accessories)
  • Image analysis system (Image analysis S/W, Frame grabber)

Images are reference only. Actual product may be different.
