Gillmore Apparatus
0.00৳
Main Features
- High resolution graphical display 128×80 pixels and 6 keys membrane keyboard
- 8 languages can be set: Italian, English, French, Spanish, Polish, Portuguese, Romanian and Cesky
- Double test procedure: it is possible to set the target revolutions / drops or the total working time
General Description

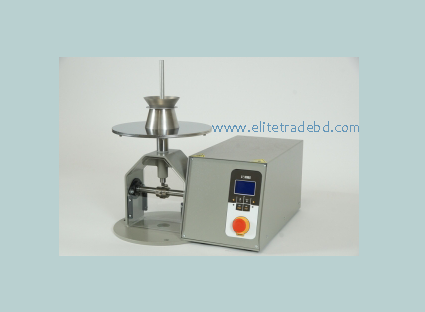

Used to determine the consistency of mortars and building lime. Two versions available: conforming to EN and ASTM standards, manual and motor operated.
Motor operated models are driven by a motor speed reducer and the number of drops are preset on the digital counter, which stops automatically the machine at the end of the cycle. Supplied complete with flow mould and tamper. EN versions include also the filling hopper.
Technical Specification
| Models | 64-L0038/A | 64-L0038/G 64-L0038/GY 64-L0038/GZ |
63-L0040 | 63-L0040/A | 63-L0040/G 63-L0040/GY 63-L0040/GZ |
| Power, W | Hand op. | 180 | Hand op. | Hand op. | 180 |
| Table dia. mm | 300 (steel) |
300 (steel) |
300 (steel) |
254 (bronze) |
254 (bronze) |
| Height of drop mm | 10 | 10 | 10 | 12.7 | 12.7 |
| Total mass of movable parts, kg | 4.2 to 4.5 | 4.2 to 4.5 | 4.2 to 4.5 | 4.08±0.05 | 4.08±0.05 |
| Flow mould dim. mm | 100 base 70 top 60 height (stainless steel) |
100 base 70 top 60 height (stainles steel) |
100 base 70 top 60 height (brass) |
101.6 base 69.9 top 50.8 height (brass) |
101.6 base 69.9 top 50.8 height (brass) |
| Dimensions mm (lxpxh) | 421x310x 390 |
50x470x 390 |
420x300x 410 |
288x254x 321 |
677x470x 321 |
| Weight approx. kg | 10 | 40 | 35 | 10 | 40 |
