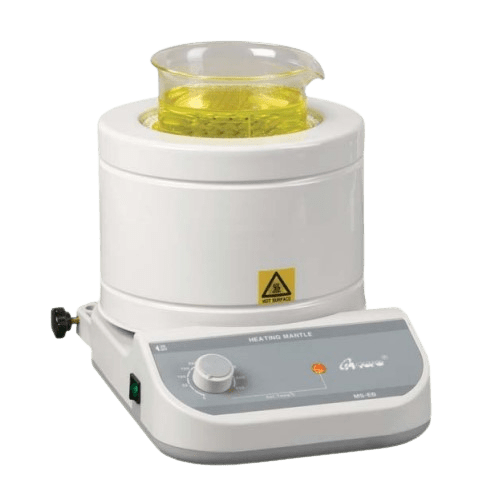

Heating mantles with controller EBH 108, 10L, 1300W

Controlled mantles

• 10000ML, 1300W, 450℃
• Model : EBH 108
• Brand  : Mtops
• Origin  : Korea

Description

Others models of products: MS-EBH(EBH 108/EBH 109)

• Ceramic fiber with strong thermal resistance
• Heating mantles for reaction flask (Cylindrical type)
• Heating mantles for beaker
• Max. temperature 450℃

Features

• Convenient use and heating mantle with built-in temperature controller
• “power on” and “Heater On” Indicating lamp
• Heating element in the mantle consists of soft glass fiber, protected from damage of the glass, excellent fixation between the heating element and glass, heating effectiveness is superior.
• Heating temperature is controlled by the electronic energy regulator and control effectively temperature between high and low by excellent fixation.
• By use of the ceramic fiber with thermal resistance and high temperature, thermal resistance is superior, surface temperature of the mantle during operation maintains low temperature for the safety of user.
• Metal housing construction bearing in the inner  temperature at over 450℃and also thermal resistance, durability and erosion-proof powder coating.

General Specifications

• Heating Element Temperature: Up to 450℃ max.
• Temp. Controller : Electronic energy regulator
• Material : Metal housing with powder coated
• Indicator Lamps : Green “Power on”, Yellow- “Heater on”
• Support Rod Clamp : For 12.7mm dia. Support rods (with 500ml~5000ml)
• Thermal Insulation : Ceramic fiber
• Support rod : Stainless steel Ø12.7×400mm(option)
• Power Supply : 220V or 110V 50/60 Hz

Model Capacity Watts Dimensions Ø× Height(mm) Internal (height : mm) Weight (Kg) EBH 108 10000ml 1300 360×300 8.4 EBH 109 20000ml 2000 410×370 12 Note:  EBH model is bottom hole type  EB108, EB109 & EBH109 → Order-made

Warranty: 01 (One) year warranty from the date of installation.

Images are reference only. Actual product may be different.
