Inverted Microscope, CSB/NSI Series, ESMC, Humanlab, Korea

Inverted Microscope, CSB/NSI Series, ESMC, Humanlab, Korea

0.00৳

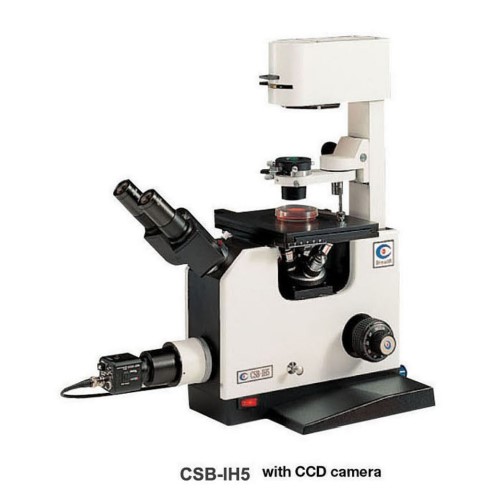

Inverted Microscope CSB/NSI Series, Humanlab, Korea

Features

  • This Microscope is suited for Fluorescent microscopy and widely used in disease and immuneless diagnosis.
  • It can be used with many optional accessories to realize CCD system, Digital camera system and etc.
  • This inverted microscope assembled specially long working distance plan achromatic objectives and long working distance condenser is widely applied in many departments

Specification

Model CSB-IH5 NSI-100
Head Binocular head, interpupillary distance adjustment: 55-75mm, diopter adjustable Trinocular head interpupilary distance adjustment: 55-75mm diopter adjustable
Photo-tube Photo level for optional CCD camera or digital camera
Magnification Eyepiece 40X600X, WF 10X,15X (Paired/each) 40X600X, WF 10X,15X (Paired/each)
Objective Plan achromatic PC4X, Long working distance plan achromatic Plan achromatic PC4X,Long working distance plan 10X/0.25,25X/.40,40X/0.60
Nosepiece Quadruple revolving nosepiece Quadruple revolving nosepiece
Focusing Coaxial coarse and fine focusing knobs, coares stroke 10mm, fine movement 0.2mm/rotation Coaxial coarse and fine focusing knobs, coares stroke 10mm, fine movement 0.2mm/rotation
Illuminator Condenser stage Halogen lamp 6V 20W, intensity controller Abbe N.A. 0.30, working distance 55.2mm, Mechanical stage, Coaxial X/Y Control knob X/Y movement range:75x50mm Halogen lamp 6V 20W, intensity controller Abbe N.A. 0.30, working distance 55.2mm
Exciting filter Filter-Yellow, Green, Blue, Grey Filter-Yellow, Green, Blue, Grey
Input power AC 220V 60Hz

Options:

CCD Monitor, Digital Camera system, Phase contrast set, Micrometer set, Image analysis system

Images are reference only. Actual product may be different.
