LCR meter, LCR-9183

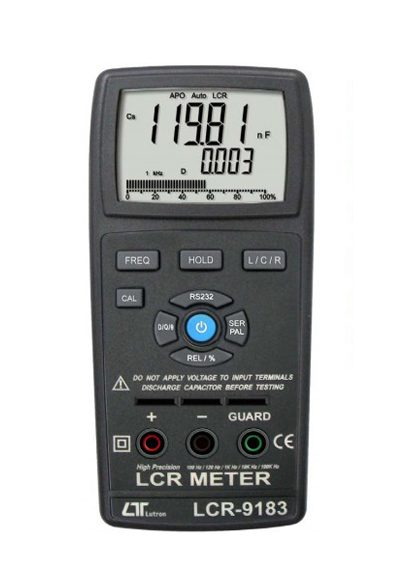

#LCR-9183 LCR METER

Features

19,999/1,999 counts dual LCD display.
AutoLCR smart check and measurement.
Serial/Parallel modes are selectable.
Ls/Lp/Cs/Cp with D/Q/θ /ESR parameters.
Support DCR mode 1.00 Ω to 200.0 MΩ .
Five different test frequency are available :100 Hz/120 Hz/1 KHz/10 KHz/100 KHz.
Test AC signal level : 0.6 V rms typically.
Test range : ( ex. F = 1 KHz )
L : 200.00 uH to 2000.0 H
C : 2000.0 pF to 2.000 mF
R : 20.000Ω to 200.0 MΩ
Multi-level battery detector.
RS232/USB PC Computer interface.
Can default auto power off.

Specification
Display :LCD size：66.8 X 52.8 mm.
Test frequency :100 Hz/120 Hz/1 KHz/10 KHz/100 KHz
Function :L/C/R Function selector, Frequency selector, D/Q/θ /ESR selector
Dissipation Factor :0.000 to 1999
Quality factor :0.000 to 1999
Calibration :Open/Short calibration
Data Hold :Freeze the display reading
Data output :RS232/USB PC computer interface
Power off :Auto shut off saves battery life or manual off by push button
Operating Temparature :0 to 50 ℃ ℃
Operating Humidity :Less then 85% R.H.
Power Supply :006P DC 9V battery :Alkaline or Heavy duty type
DC 9V adapter input:AC/DC power adapter is optional.
Powerconsumption :DC 35 mA approximately
Dimension :193 x 88 x 41mm
Weight :382 g
Standard Accessories Included :Instruction manual, Alligator clips
