Metallographic Microscope, JSM Series, ESMC, Humanlab, Korea

Metallographic Microscope, JSM Series, ESMC, Humanlab, Korea

0.00৳

Metallographic Microscope JSM Series, Humanlab, Korea

Features

  • This upright microscope has adjustable built-in illuminator,
  • adjustable field diaphragm and aperture diaphragm.
  • Trinocular model can be attached optional CCD camera or Digital camera system.
Specifications

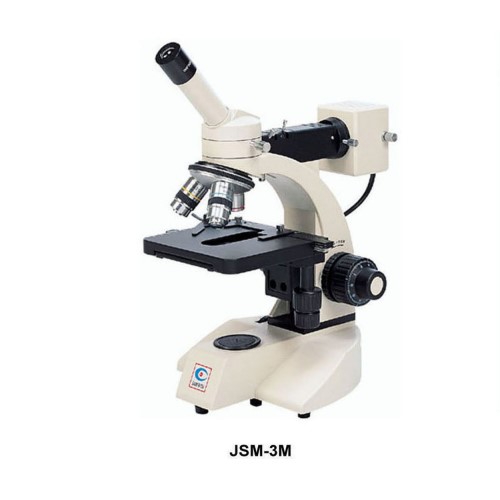

Model JSM-3M JSM-3B JSM-3T
Head Monocular head Binocular Head Trinocular head
45° inclined Interpupilary distance & Diopter adjustable
Magnification 40X-60X
Eyepiece WF 10X, 15X
Objective Achromatic, 4X, 10X, Plan achromatic 40X
Illuminator 6V 20W halogen lamp, the filament of lamp is adjustable provided with intensity controller & on/off switch

Vertical illumination adaptor:

With aperture diaphragm and field diaphragm is a adjustable
Focusing Coaxial coarse & Fine Focusing Adjustment with tension adjustment ring
Stage Mechanical stage, coaxial controller, Size: 132x142mm,Movement range: 76×52 mm
Nosepiece Triple, 360° Rotatable, Click-Stop  of each objective
Input Power AC220V, 60Hz
Options-

CCD Monitor System (JSM-3T: CCD color camera, C-Mount adapter, Video Cable, Power Supply, High resolution 14” color monitor

Digital Camera system (JSM-3T): Digital Camera, Relay lens with C-mount adapter, AC adaptor, Memory card, carrying case

Micrometer set: 0.01 mm stage micrometer, WF10X with 0.1mm micrometer

Image analysis system: Image frame grabber, Image analysis software

Pressing device

Images are reference only. Actual product may be different.
