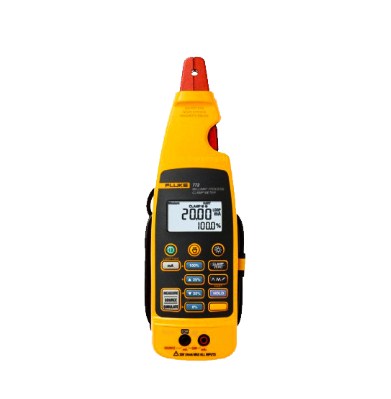

Milliamp Clamp Meter Fluke 772

Milliamp Clamp Meter Fluke 772

0.00৳

Milliamp Clamp Meter Fluke 772

$0.00
Fluke 772 Milliamp Clamp Meter
  • Brand: Fluke
  • Branch: Industrial Grade
  • Category: Clamp Meters

Fluke 772 Milliamp Clamp Meter measures, sources, and simulates 4-20 mA signals for the testing system I/O or IPs

The Fluke 772 adds to the essential capabilities of the Fluke 771 to save lots of longer and expand its applications. With the 771, you will even be in a position to supply and simulate 4-20 mA signals for the testing system I/O; live 4-20 mA signals with in-circuit measurement; power a transmitter with the twenty-four V loop power supply, and mechanically ramp and step amendment the 4-20 mA output for remote testing.

You’ll be ready to check 4–20 mA signals 5 times quicker than with ancient DMMs, and while not breaking the loop. which means you’ll be able to troubleshoot a live device while not having to power down, which might prevent time, and assist you to avoid presumably missing one thing occurring within the method.

Key features:

  • Loop calibrator that measures 4 to 20 mA signals without breaking the loop
  • Features best in class 0.2% accuracy
  • Simultaneously measures the mA signal with the clamp and sources a mA signal
  • Delivers 0.01 mA resolution and sensitivity
  • Measures mA signals for PLC and control system analog I/O

Other useful features:

  • Simulates 4-20 mA signals for testing control system I/O
  • Sources 4 to 20 mA signals for testing control system I/O or I/Ps
  • Measures 4 to 20 mA signals with in-circuit measurement
  • Includes simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
  • Automatically changes the 4 to 20 mA output for remote testing
  • Measurement Spotlight to illuminate hard to see wires in dark enclosures
  • Measures 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Features a detachable clamp with the extension cable for measurements in tight locations
  • Captures and displays changing measurements with Hold function
  • Offers mA output linear ramp or 25% step output
  • Extends battery life with auto-off and backlight timeout
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span

Specifications: Fluke 772 Milliamp Clamp Meter

Specifications
Diameter of measurable conductor 0.177” or 4.5 mm max
Operating temperature -10 to 50ºC
Storage temperature -25 to 60ºC
Operating humidity < 90% @ <30ºC, < 75% @ 30 to 55ºC
Operating altitude 0 to 2000 m
IP rating IP 40
Size 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight 410 g, (14.4 oz)
Vibration Random 2 g, 5 to 500 Hz
Shock 1 meter drop test (except the jaw)
EMI/RFI Meets EN61326-1
For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.
Temperature coefficient 0.01% ºC
(< 18ºC or > 28ºC)
Power, battery life (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
Warranty Three years for electronics
One year for cable and clamp assembly
Functional Specifications
mA measurement
(measured by clamp)		 Resolution / range 0 to 20.99 mA
Accuracy 0.2% + 5 counts
Resolution / range 21.0mA to 100.0 mA
Accuracy 1% + 5 counts
mA measurement (measured in series with test jacks) Resolution / range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
mA source (maximum mA drive: 24 mA into 1,000 ohms) Resolution / range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
mA simulate (maximum voltage 50 V dc) Resolution / range 0 to 24.00 mA
Accuracy 0.2% + 2 counts

Includes:

Models: Fluke 772 Milliamp Clamp Meter Includes:

  • Four AA alkaline batteries (installed)
  • Soft carrying case
  • The hanging tool with hook and loop strap
  • Instruction sheet
  • TL75 test leads
  • AC 72 detachable clip
  • TL 940 mini hook test leads
