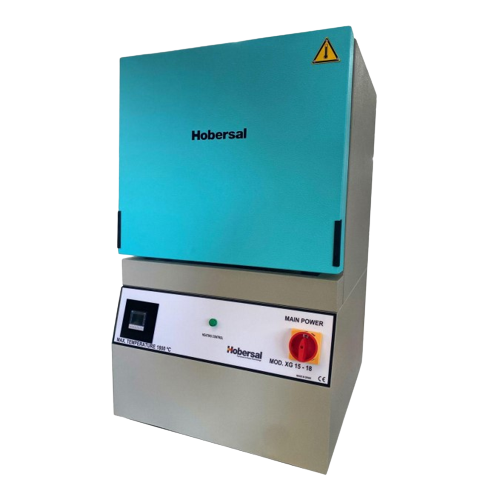

Muffle Furnace (Metal and Ceramic Sintering Chamber furnaces), XG Series, ESMC, Hobersal, Spain

Muffle Furnace (Metal and Ceramic Sintering Chamber furnaces), XG Series, ESMC, Hobersal, Spain

0.00৳

High temperature muffle furnace XG series (MoSi2), up to 1900 ºC, 3L to 30 liters

  • Model: XG Series
  • Brand: Hobersal
  • Origin: Spain

Muffle Furnace

Muffle Furnace (Ceramic and Metal sintering Furnaces)

High temperature muffle furnace XG series (MoSi2)

  • Temperatures 1.600 ºC  -1.800 ºC -1.900 ºC
  • Vertical lift door
  • Let work 24/7 in continuous mode
  • MoSi2 High quality molybdenum disilicide heating elements (Superkanthal1800 and Superkanthal1900)
  • Ramp programmer up to 64 steps
  • Fast heat
  • Inox chamber.
  • Low thermal mass insulation
  • Built with low density and ceramic fiber
  • Double isolation chamber + air chamber
  • Outside casing in metal sheet painted ( inox as optional)
  • Ventilated via rear by ceramic chimney
  • Thermocouple type S or B
  • Compact and lightweight furnace
  • Easy to replace all the spare parts by the end user

Furnace control:

  • Under the furnace
  • Solid state relay
  • PAD Digital control. Microprocessor. Alarm.
  • Safety Shut-off
  • Thermocouple break shut-off
  • Turns off upon door opening
  • Manufactured under the CE

Accessories

  • Ceramic tray
  • Smoke chimney
  • Forced smoke chimney
  • Fast Cooling system
  • Security class II. Over-temperature protection (OTP)
  • Inlet gas entry
  • Flow meter box

Control system

  • Ramp programmer up to 64 steps
  • Eurotherm EPC Series  + Data logger Itools sofware by Ethernet (Optional)
  • Eurotherm Nanodac Series  +Data logger and Itools sofware by Ethernet according AMS2750E and 21CFR Part 11 (Optional)

Standards: Ceramic and metal sintering process

  • Sintering  furnaces for your 3D metal and ceramic printing applications.
  • Technical ceramics, sintering, debinding, bioceramics process

TECHNICAL DETAILS

The metal and ceramic sintering process is used to compact a powder into a solid with the application of heat. The samples are heated in a sintering furnace to a temperature lower than the melting point which causes the powder particles to bond together into a compact mass.

Hobersal offers a very complete range of furnaces for sintering, vacuum furnaces, controlled atmosphere furnaces, muffle furnaces, ovens and high temperature muffle and tube furnace

Model XG3/16 XG6/16 XG8/16 XG12/16 XG15/16 XG22/16 XG30/16
Inner Dimensions

(H x W x D) (mm)

 100x150x150 150x200x200 200x200x200 200x200x300 250x250x250 250x300x300 300x300x300
Outer Dimensions

(H x W x D) (mm)

 750x480x590 750x530x660 845x525x660 800x525x700 975x5575x700 975x625x750 1025x625x750
Volume (Ltr) 3 6 8 12 15 22 30
Power (Kw) 4 6 8 10 10 12 15
Voltage (V) 220 220 220 220 220 380 III 380 III
Heating Zones 4 4 4 4 4 4 4
Max. Temp. ºC 1650ºC 1650ºC 1650ºC 1650ºC 1650ºC 1650ºC 1650ºC
Max. Temp. ºC Limited Time 1600ºC 1600ºC 1600ºC 1600ºC 1600ºC 1600ºC 1600ºC
Max. Temp. ºC Continuous 1550ºC 1550ºC 1550ºC 1550ºC 1550ºC 1550ºC 1550ºC
Thermocouple S S S S S S S
Control Type R. Prog R. Prog R. Prog R. Prog R. Prog R. Prog R. Prog
Heating Elements Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800
Model XG3/18 XG6/18 XG8/18 XG12/18 XG15/18 XG22/18 XG30/18
Inner Dimensions

(H x W x D) (mm)

 100x150x150 150x200x200 200x200x200 200x200x300 250x250x250 250x300x300 300x300x300
Outer Dimensions

(H x W x D) (mm)

 750x480x590 750x530x660 845x525x660 800x525x700 975x5575x700 975x625x750 1025x625x750
Volume (Ltr) 3 6 8 12 15 22 30
Power (Kw) 4 6 8 10 10 12 15
Voltage (V) 220 220 220 220 220 380 III 380 III
Heating Zones 4 4 4 4 4 4 4
Max. Temp. ºC 1800ºC 1800ºC 1800ºC 1800ºC 1800ºC 1800ºC 1800ºC
Max. Temp. ºC Limited Time 1750ºC 1750ºC 1750ºC 1750ºC 1750ºC 1750ºC 1750ºC
Max. Temp. ºC Continuous 1700ºC 1700ºC 1700ºC 1700ºC 1700ºC 1700ºC 1700ºC
Thermocouple B B B B B B B
Control Type R. Prog R. Prog R. Prog R. Prog R. Prog R. Prog R. Prog
Heating Elements Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800 Kanthal Super 1800
Model XG3/19 XG6/19 XG8/19 XG12/19 XG15/19 XG22/19 XG30/19
Inner Dimensions

(H x W x D) (mm)

 100x150x150 150x200x200 200x200x200 200x200x300 250x250x250 250x300x300 300x300x300
Outer Dimensions

(H x W x D) (mm)

 750x480x590 750x530x660 845x525x660 800x525x700 975x5575x700 975x625x750 1025x625x750
Volume (Ltr) 3 6 8 12 15 22 30
Power (Kw) 4 6 8 10 10 12 15
Voltage (V) 220 220 220 220 220 380 III 380 III
Heating Zones 4 4 4 4 4 4 4
Max. Temp. ºC 1900ºC 1900ºC 1900ºC 1900ºC 1900ºC 1900ºC 1900ºC
Max. Temp. ºC Limited Time 1850ºC 1850ºC 1850ºC 1850ºC 1850ºC 1850ºC 1850ºC
Max. Temp. ºC Continuous 1800ºC 1800ºC 1800ºC 1800ºC 1800ºC 1800ºC 1800ºC
Thermocouple B B B B B B B
Control Type R. Prog R. Prog R. Prog R. Prog R. Prog R. Prog R. Prog
Heating Elements Kanthal Super 1900 Kanthal Super 1900 Kanthal Super 1900 Kanthal Super 1900 Kanthal Super 1900 Kanthal Super 1900 Kanthal Super 1900

Images are reference only. Actual product may be different.
