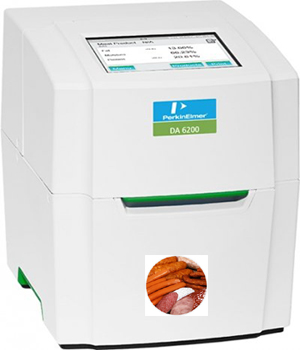

NIR Analyzer – DA 6200™ Perten
0.00৳
Introduction
The DA 6200™ is an advanced and portable NIR transmission analyzer. A cost-effective analytical solution making routine analysis easier than ever before.
The DA 6200™ sets new standards for advanced and portable NIR analysis. Enabling user to verify raw material compositions, improve consistency and ensure quality of finished products. Measurement results are accurate and based on a large representative sample volume. Analysis cost is minimal as the DA 6200™ uses no consumables or chemicals expenditures.
DA 6200™ NIR Analyzer - Specifications
| Analysis principle: | Diode Array, transmittance |
| Regression options: | ANN (Artificial Neural Networks), PLS (Partial Least Squares) |
| Analysis time: | 30-60 seconds depending on product, 20 sub-measurements |
| Sample volume: | Up to 170 cm3 |
| Wavelength range: | 850 – 1050 nm |
| Size (W x D X H): | 200 X 225 X 300 mm |
| Weight: | 5.5 kg |
| Display: | 5.7” color touch screen |
| Battery operation: | Up to 3 hours operation, 8 hours standby |
| Ambient temperature: | 5 to 35 oC |
| Interfaces: | Ethernet, 2 USB ports |
Key features – DA 6200™ NIR Analyzer
The DA 6200™ sets new standards for advanced, cost-effective quality and process control.
Accurate
The DA 6200™ is based on robust Diode Array technology with analysis done using transmittance NIR technology. A very large sample volume is analyzed in each measurement, ensuring a representative and accurate measurement.
Easy to use
The straight-forward sample handling and intuitive user interface enable anyone to operate the DA 6200™ confidently and get accurate results.
Compact & Stand-alone
The DA 6200™ is a stand-alone analyzer operated through an integrated touch screen and designed to have a small footprint.
Portable
With a light weight design and a battery, the analyzer is easy to carry and place in different sampling positions. Up to eight hours of battery operation enables the analyzer to be used for measurements by the line without external power supply for an entire production shift.
Robust & low cost of ownership
Analyze as often as desired. There are no associated consumables or chemical expenditures. The DA 6200™ analyzer is based on robust Diode Array technology, without the use of moving parts in spectrometer. External check sample is included, proving an easy tool to verify instrument performance regularly.
Ready-to-use calibrations
The DA 6200™ is equipped with pre-developed calibrations to provide results from day one.
Calibrations have been developed in collaboration with multiple institutes, laboratories and processing plants, based on a large variability in samples and using advanced PLS and ANN algorithms.
If needed, calibrations can be further updated using locally collected samples.
Applications
Meat & Meat products
Whether you produce ground meats, sausages, mechanically separated poultry or other meat products, the DA 6200™ will help you reduce costs improve quality. The DA 6200™ can analyze all types of ground or homogenized meat samples for fat, moisture and protein content in 30 seconds. Additional parameters like collagen, salt or ash are also available upon request.
• Analyze incoming meat batches to ensure they meet minimum purchasing criteria. Use compositional information to optimize their use.
• Reduce lean meat give away and out-of-spec products by monitoring fat content in mixing step.
• Verify finished product quality to ensure it is consistent and meets customer expectations. Reduce dependency and cost of sending samples to external laboratories.
Olive products
The DA 6200™ helps you to improve profit and yield in olive milling. Olives milled to paste and olive pomace from the milling line can be analyzed in 30 seconds without use of any associated consumables or chemical expenditures.
• Analyze incoming olives for fat and moisture content to ensure fair payments and know the potential yield.
• Analyze olive pomace fat and moisture content to optimize extraction and avoid wasting valuable oil.
