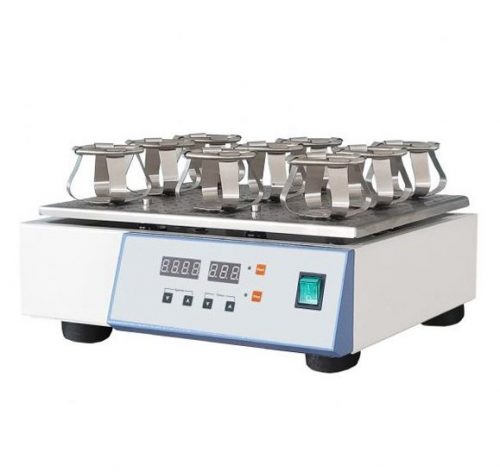

Open air shaker OS series

0.00৳

OS series open air shaker

OS shaking water bath adopts brushless DC motor and have the features of over current protection function, automatic memory function.

Features

Using uniaxial drive balancing technology, machine runs smoothly with low noise;
Brushless DC motor, long life, no need maintenance;
Overcurrent protection function, automatically cut off power without affecting other
equipment;
Automatic memory function, after starting up, run according to the last setting;
Slow start function to prevent liquid splashing.

Specifications

Model:	OS-2000	OS-3000	OS-4000
Shaker model:	Convolution/reciprocation	Convolution/reciprocation	Convolution/reciprocation
Cyclotron frequency range:	25-300 rpm	25-300 rpm	25-300 rpm
Frequency sensitivity (rpm):	±1	±1	±1
Orbit diameter (mm)	Φ26	Φ26	Φ26
Standard capacity:	9x250Ml	12x250Ml	25x250Ml
Size of platform (mm):	330×280	350×350	490×490
Timing range (continuous available):	0-9999h/min	0-9999h/min	0-9999h/min
Number of platform:	1	1	1
Outer dimension (WxDxH) mm:	350x330x230	350x400x230	510x540x230
Power (W):	300	400	500
Power supply:	AC220V±10% 50-60Hz	AC220V±10% 50-60Hz	AC220V±10% 50-60Hz
Optional:	Double layer, max capacity will be double of standard capacity

50 mL	20	36	49
100 mL	16	28	39
250mL	9	12	25
300mL	8	12	20
500Ml	6	10	16
1L	3	6	9
2L	/	4	6
