Plant Growth Chamber, PGC Series, ESMC, Humanlab, Korea

Plant Growth Chamber, PGC Series, ESMC, Humanlab, Korea

0.00৳

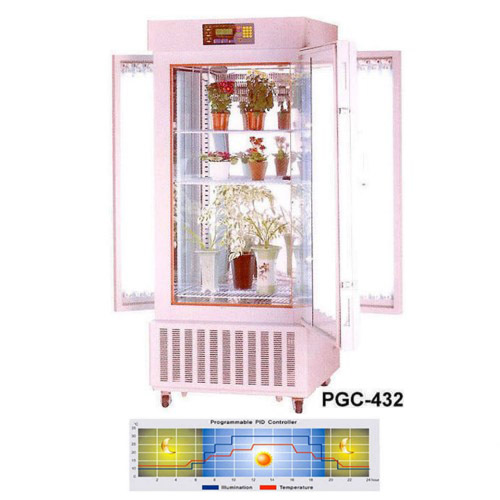

Plant growth chamber, PGC series, Humanlab, Korea

Features

  • Advanced refrigeration system prevents chamber icing and condensation
  • Preheating technology by humidifier evaporator eliminates hot and cold spots
  • 7 days channel microprocessor ensures high level of accuracy
  • Ideal for pharmaceutical stability, QA/QC and food packing testing lab.
  • Supplier in Bangladesh-Elite Scientific & Meditech Co
  • For any queries please visit our website-www.elitetradebd.com
Specifications
Model PGC-432 PGC-864 PGC-1344
Capacity 432 liter 864 liter 1344 liter
Chamber (WxBxH)mm 600x600x1200 900x800x1200 1400x800x1200
Temp. Range -10 to 60 ‘C (0% illumination) /14to 60 ‘C (100% illumination)
Accuracy ±0.2’C I uniformity: ±1 ‘C at20’C
Humidity Range 30 to 98% RH
Accuracy ±1.0% / uniformity: ± 5 % at 60% RH
Illumination Range o – 15,000 Lux 18 steps
Lamp FL40Wx 12ea FL40W x 16 ea FL40Wx 20 ea
Heater 2 x 650W 2 x800W 2 x 1500W
Refrigerator 1/2HP 3/4HP 1HP
TImer 24 hours and 7 days
Control & Display Programmable microprocessor PID controller I Digital LED display
Safety device Over temp. protector, Safety cut-off valve, Over current breaker
Material Interior Stainless steel plate
Exlerior Powder coated steel plate
Door 1 x tempered glass and silicon packing 2 x tempered glass
Power source 220VAC, 50/60Hz,single phase
Overall (WxDxH) 820 x930 x2000mm 1020x1130x2000 mm 1620x1130x2000mm
Weight (Kg) 315 510 590
Options :
  1. 1) Daylight and cool white light spectrums
  2. C02 control & I R Censor I 300 to 5000 ppm
  3. Communication interface
  4. Digital Recorder /6 point

Images are reference only. Actual product may be different.
