#Portable dissolved oxygen meter, DOS-1703

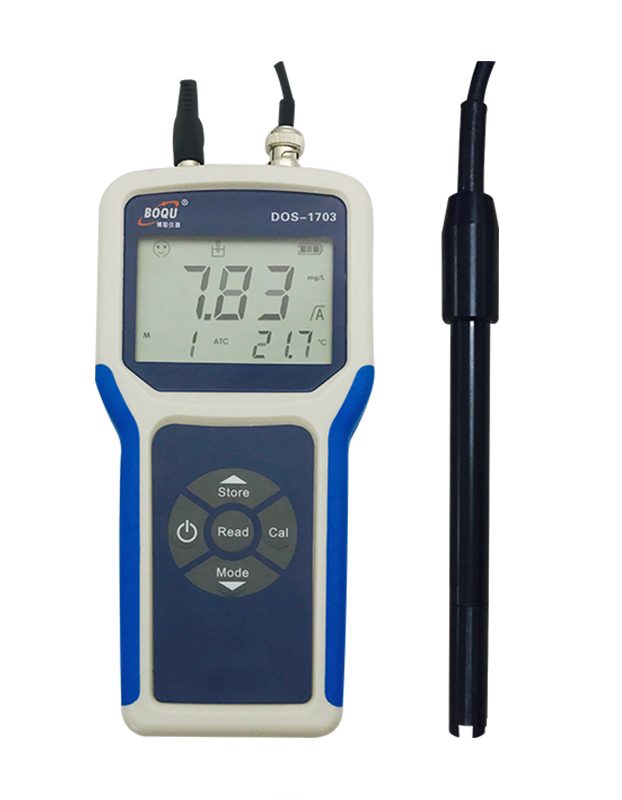

#DOS-1703 PORTABLE DISSOLVED OXYGEN METER
DOS-1703 portable dissolved oxygen meter is outstanding for ultra-low power microcontroller measurement and control, low power consumption, high reliability, intelligent measurement, using polarographic measurements, without changing the oxygen membrane. Having reliable, easy (one-hand operation) operation, etc.; the instrument can display dissolved oxygen concentration in two kinds of measurement results indicates, mg/L (ppm) and the oxygen saturation percentage (% ), in addition, measure the temperature of the measured medium simultaneously.
Technical indexes
| Product | Portable Dissolved Oxygen Meter | |
| Measuring range | DO | 0.00–20.0mg/L |
| 0.0–200% | ||
| Temp | 0…60℃ （ATC/MTC） | |
| Atmosphere | 300–1100hPa | |
| Resolution | DO | 0.01mg/L,0.1mg/L(ATC） |
| 0.1%/1%(ATC） | ||
| Temp | 0.1℃ | |
| Atmosphere | 1hPa | |
| Electronic unit measurement error | DO | ±0.5 % FS |
| Temp | ±0.2 ℃ | |
| Atmosphere | ±5hPa | |
| Calibration | At most 2 point, (water vapor saturated air/zero oxygen solution) | |
| Power supply | DC6V/20mA; 4 x AA/LR6 1.5 V or NiMH 1.2 V and chargable | |
| Size | 230×100×35(mm) | |
| Display | LCD | |
| Sensor input connector | BNC | |
| Data storage | Calibration data；99 groups measurement data | |
| Working condition | Temp | 5…40℃ |
| Relative humidity | 5%…80% (without condensate) | |
| Installation grade | Ⅱ | |
| Pollution grade | 2 | |
| Altitude | <=2000m | |
