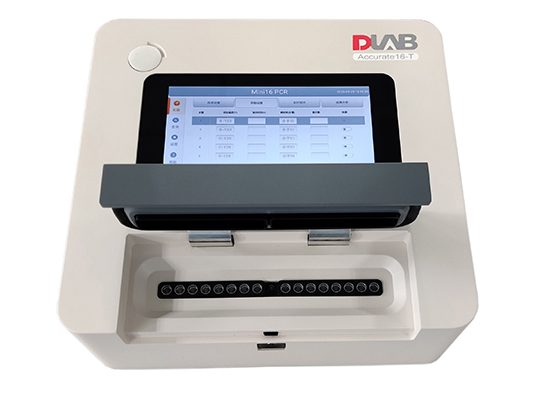

Real time PCR system, Accurate 16-T

0.00৳

#Thermo Cyclers & Real-Time PCR #Real-Time PCR System #Accurate 16-T

Features-

Accurate 16

On board software with large screen panel, easy for use:7-inch color touch screen shows all parameters, test results and real time testing curve.

Portable and light : the weight is only 4kg. It can be used with vehicle power supply for immediate on-site detection.

Sensitive and efficient optical signal detection system, multi-channel fluorescence without crosstalk: based on unique Fresnel lens, high-efficiency PMT and maintenance-free LED. 16-hole scanning takes only 1s.

Ultra-fast temperature control system: unique liquid circulation refrigeration.

Compatible with 0.2mL PCR transparent tubes or eight stripes, can measure 16 samples at a time.

Software functions can be customized.

4G data memory. Testing results can be exported with USB or printed.

 Specifications-

Sample capacity 2×8 0.2ml tube/strips,clear
Reaction volume 10-50μl
Touch screen YES
Thermal cycle technology Peltier, liquid circulation refrigeration
Max. Heating/Cooling rate 6.0°C/s
Heating temperature range 4 – 100 °C
Temperature accuracy ±0.2°C
Temperature uniformity ±0.2℃ @60℃ ±0.3℃ @95℃
Excitation light source Monochrome high efficiency LED
Detection device PMT
Detection mode Fast hole-by-hole scanning
Fluorescent channels Standard:FAM/ SYBR, VIC/HEX/ TET             Optional:ROX,CY5/TAMRA
Sensitivity Single copy gene
Dynamic range 10 orders of magnitude copies
Analysis mode CT value analysis, absolute quantitative analysis
Dimension [W×D×H] 205×190×98mm
Power Supply 100-240V or Optional 12V, 10A mobile power
Weight 4kg
