Rotary Evaporator, Hahnvapor HS Series, ESMC, Humanlab, Korea

Rotary Evaporator, Hahnvapor HS Series, ESMC, Humanlab, Korea

0.00৳

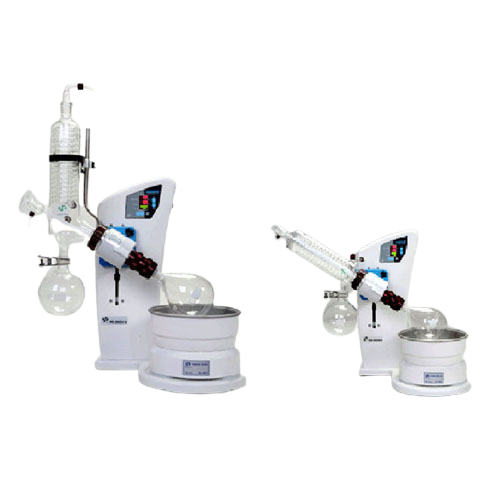

Rotary evaporator, Hahnvapor HS Series, Humanlab, Korea

Features

  • Visual display of rotating speed. temperature of the water bath and vapour
  • Excellent in durability of the body and every area of contacting vapour
  • PTFE sealing method is adopted for glass contacted area
  • Easy for washing and removal of viscous material with evaporating flask of dia 100 mm
  • Supplier in Bangladesh-Elite Scientific & Meditech Co
  • For any queries please visit us- www.elitetradebd.com

Specifications

Model HS-2005V-N /HS-2005S-N HS-5SP
Rotational Range 20 – 280 rpm 10 – 180 rpm (Max.280 rpm)
Drive System Brushless DC motor
Lift System Motorized automatic
Glass Material Pyrex
Evaporating Capacity 50 – 3000ml 5000ml
Receiving Capacity 50 – 3000ml 3000ml
Pressure & Vacuum Max. 2 bar & 710 mmHg
Bath Capacity 4.3 liler
Bath Temperature 20 – 180′(;
Control & Display Digital LED display
Safely Device Over temp. limiter, Over current protection
Power source 220VAC, 50/60Hz
Overall (WxDxH)mm 615 x41 Ox880 500x700x1600
Weight (Kg) 24 48
Accessories
  • Water Bath I Model: HS-3001
  • 1 liter of glass set
Options:
  • Electric Aspirator / Model :HS-3000
  • Water Circulator / Model: HS-3005 N
  • Diaphragm Vacuum Pump / HS-3004
  • Vacuum Controller / Model: HS-0245

Images are reference only. Actual product may be different.
