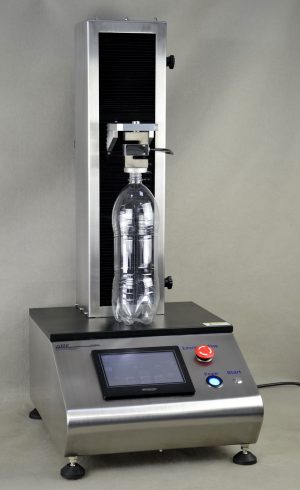

Traction and Compression Tester

Characteristic:

• Perfectly parallel plates
• Automatic record of the force
• Touch screen display
• Predefined the testing distance and testing speed
• Available for both compression (top load) test the traction (pull) test
• User-defined test cycle (up to 4 steps of force and holding time) satisfies different test request
• Memory of 30 products, 10 operators, batch number, sample number ( all by password )
• Easy installation of samples.
• Displays all the information during cycle: time, setting, operator, product, batch NO., Sample NO., value
• Reviews the real-time testing curve
• RS232 outputs
• Stainless steel design ensures the durability of tester
• Overload protected
• Safety design

Technical specifications:

• Dimensions: 500 x 400 x 870 mm
• Measuring range: 0-1000 N (Bigger by order)
• Resolution:1 N
• Power: 110/240 V, AC50-60 Hz
• Weight: 50 kg
