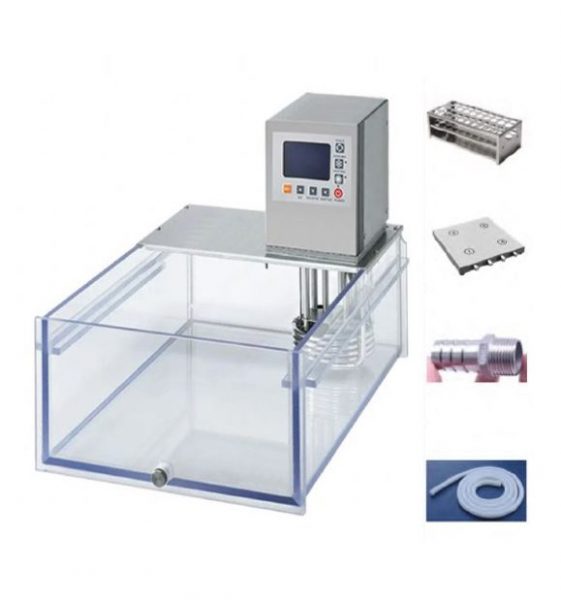

Transparent water bath OHC series

Transparent water bath OHC series

0.00৳

#Transparent water bath

HC series water bath transparent chamber design with big improvement on temperature uniformity and accuracy, especially designed for tissue culture, enzyme reaction studies, growth observation studies etc.

Description

Transparent chamber design, with big improvement on temperature uniformity and accuracy, especially designed for tissue culture, enzyme reaction studies, growth observation studies etc.

Features

  • Transparent chamber tolerable temperature to 100°C
  • Precision thermostatic, temperature controlled by microprocessor with Pt100 sensor
  • Membrane push-button control
  • Over temperature alarm
  • Anti-dry burning function
  • Powerful electric stirring function

Specifications

Model: HC-10T HC-16T HC-23T
Capacity (L): 10 16 23
Temperature (°C): RT to 80°C RT to 80°C RT to 80°C
Power (kW): 1.0 1.5 1.5
Resolution (°C): 0.1 0.1 0.1
Accuracy (°C): ±0.5 0.5 0.5
Stability (°C): ±0.1 ±0.1 ±0.1
Power  (kW): 1.0 1.5 1.5
Voltage: 220V 50Hz 220V 50Hz 220V 50Hz
Max flow: 14L/Min 14L/Min 14L/Min
Max lift: 12M 12M 12M
Connector: M16 (male screw) M16 (male screw) M16 (male screw)
Opening (WxDxH) mm: 150x250x150 250x250x150 360x250x150
Tank (WxDxH) mm: 160x420x150 260x420x150 370x420x150
Overall (WxDxH) mm: 200x440x350 300x440x350 410x420x350
Local distributor: Elite Scientific and Meditech Co
For more visit: www.elitetradebd.com
E-mail: elitetradebd@gmail.com

Optional spare parts

Tube rack No.1 190x80x85;Φ13×40
No.2 230x95x85;Φ17×40
No.3 250x105x85;Φ19×40
No.4 270x110x85;Φ21×40
No.5 310x130x85;Φ25×40
No.6 330x140x85;Φ27×40
Magnetic stirrer No.1 10-2000rpm; 25Wx2 points; 250x150x30 mm
No.2 10-2000rpm; 25Wx4 points; 250x250x30 mm
No.3 10-2000rpm; 25Wx6 points; 360x150x30 mm
Connector G-15/6 304 stainless steel; DN15-6mm
G-15/8 304 stainless steel; DN15-8mm
G-15/10 304 stainless steel; DN15-10mm
G-15/12 304 stainless steel; DN15-12mm
G-15/14 304 stainless steel; DN15-14mm
G-15/16 304 stainless steel; DN15-16mm
Hose L-6/8 Silicon tube; inner diameter 6mm-outer diameter 8mm
L-8/10 Silicon tube; inner diameter 8mm-outer diameter 10mm
L-10/12 Silicon tube; inner diameter 10mm-outer diameter 12mm
L-12/14 Silicon tube; inner diameter 12mm-outer diameter 14mm
L-14/16 Silicon tube; inner diameter 14mm-outer diameter 16mm
L-16/18 Silicon tube; inner diameter 16mm-outer diameter 18mm
