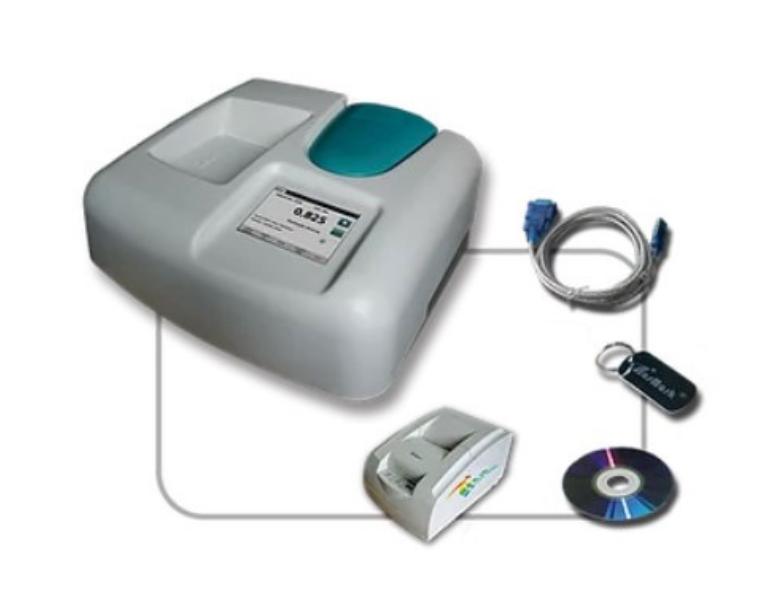

UV/VIS double beam spectrophotometer 300FD series
0.00৳
UV/VIS Spectrophotometer 300FD series
[Traditional PC no longer in operation with powerful software, instrument can do more automatic measurement for 8 curettes a QC lab power horse]
Feature
Professional FD+ version
Specifications
| Model | UV300/XFD+ | UV300/1FD+ | UV300/2FD+ | |||||
| Spectral Bandwidth | Variable (1.1.5,2 nm) | 1nm | 2nm | |||||
| Optical system | Double beam | |||||||
|
Wavelength |
range | 190-1100nm | ||||||
| accuracy | ±0.1 nm (656.1 nm; ±0.3 nm (whole range) | |||||||
| repeatability | ≤0.2nm | |||||||
| setting | Automatic | |||||||
| resolution | 0.1nm | |||||||
|
Photometric |
range | 0~200%T,-4~4A;0~9999C,0~9999F | ||||||
| accuracy | ±0.002A(0~0.5A); ±0.004A(0.5~1A); ±0.3%T(0~100%T) | |||||||
| reparability | ≤0.001A(0~0.5A); ≤0.002A(0.5~1A); ≤0.1%T(0~100%T) | |||||||
| Baseline | drift | ≤0.0004 A/h(500nm,0A) | ||||||
| flatness | ±0.0015A | |||||||
| Stray light | ≤0.5%T(220/360nm) | |||||||
| Noise | ±0.01%T(0%T); ±0.2%T(100%T); ±0.0004A(500nm) | |||||||
| Light source | Tungsten lamp & D2 lamp | |||||||
| Detector | Silicon photodiodes | |||||||
| Display | 8 inch color touch screen, 800Ă—600 pixel | |||||||
| Data output port | USB, RS232 | |||||||
| Power requirements | AC-90-250V, 50/60Hz | |||||||
|
21CFR Electronic Features
|
User management
|
No. of users | 50 | |||||
| User entry password | Yes | |||||||
| User level | 4 | |||||||
|
Data management |
Data processing | PW protection | ||||||
| PW reminder | Yes | |||||||
| Measuring mode | 200, editable | |||||||
| Discard method database | 1000 Groups data | |||||||
| Filered measurement database | 100000 Groups data | |||||||
| Discarded measurement database | 10000 Groups data | |||||||
| Audit Trail database | 1000000 Groups data | |||||||
| Safe guard in data transmission | Software to PC with protectior | Provided | ||||||
| Data Formate | PDF, Excel, MDS verify | |||||||
| Additional features for 21CFR | On-line printing | Yes | ||||||
| Database Printing | Yes | |||||||
| Easy mode | Quick measurement | Yes | ||||||
| Net weight | 25 kg | |||||||
| Gross weight | 28 kg | |||||||
| Dimension (LxWxH) cm | 67x60x28Â Instrument;Â 25x16x14Â (Printer) | |||||||
| Packing (LxWxH) cm | 84x77x44Â Instrument;Â 39x22x22Â (Printer) | |||||||
| Configuration | UV300/XFD+
 8 cell auto cuvette holder 10 mm Quartz cuvette x2 10mm Glass cuvette x8 Data transfer safety SW power cord |
UV300/1FD+
 8 cell auto cuvette holder 10 mm Quartz cuvette x2 10mm Glass cuvette x8 Data transfer safety SW power cord |
UV300/2FD+
8 cell auto cuvette holder 10 mm Quartz cuvette x2 10mm Glass cuvette x8 Data transfer safety SW power cord |
|||||
