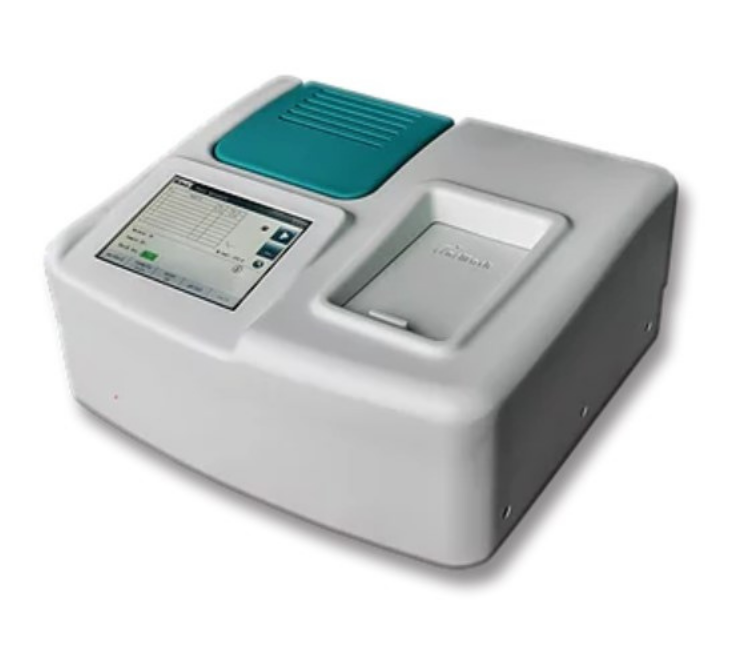

UV/VIS Single beam spectrophotometer, 100star series
0.00৳
UV/VIS Spectrophotometer 100star series, UV100-star2 UV/VIS Spectrophotometer, UV100-star4 UV/VIS Spectrophotometer, UV100-star2 Single beam Spectrophotometer, UV100-star4 Single beam Spectrophotometer, UV100-star2, UV100-star4, UV100-star2 Spectrophotometer, UV100-star4 Spectrophotometer,
UV/VIS Spectrophotometer 100star series
Feature
> Single beam, compact design
> Full functions, scanning and graphic analysis on screen
> Unique software & UI design make operation very convenient
> 8 inches color touch screen
> 4-cell automatic sampling
Specifications
| Model | UV100-star2 | UV100-star4 | |
| Spectral Bandwidth | 2nm | 4nm | |
| Optical system | Single beam | ||
|
Wavelength |
range | 190-1100nm | |
| accuracy | ±0.5nm | ||
| repeatability | ≤0.2nm | ||
| setting | Automatic | ||
| resolution | 0.1nm | ||
|
Photometric |
range | 0~200%T,-0.3~3A,0~9999C,0~9999F | |
| accuracy | ±0.002A(0~0.5A); ±0.004A(0.5~1A); ±0.3%T(0~100%T) | ||
| reparability | ≤0.001A(0~.5A); ≤0.002A(0.5~1A); ≤0.2%T(0~100%T) | ||
| Baseline | drift | ≤0.002A/h(500nm,0A) | |
| flatness | ±0.0015A | ||
| Stray light | ≤0.1%T(220/360nm) | ||
| Noise | ±0.02%T(0%T); ±0.05%T(100%T); ±0.0001A(500nm) | ||
| Light source | High quality tungsten lamp & D2 lamp | ||
| Detector | High quality silicon photodiodes | ||
| Display | 8 inch color touch screen, 800x600pixel | ||
| Data output port | USB, RS232 | ||
| Power requirement | AC-90-250V, 50/60Hz | ||
| Net weight | 15 kg | 15 kg | |
| Gross weight | 18 kg | 18 kg | |
| Dimension (LxWxH) cm | 47.5x42x22 | 47.5x42x22 | |
| Packing (LxWxH) cm | 62x59x36.5 | 62x59x36.5 | |
| Configuration | UV100-star2
4 cell auto cuvette holder (10-50mm) 10 mm Quartz cuvette x2 10mm Glass cuvette x4 Identify your power cord from accessories |
UV100-star4
4 cell auto cuvette holder (10-50mm) 10 mm Quartz cuvette x2 10mm Glass cuvette x4 Identify your power cord from accessories |
|
