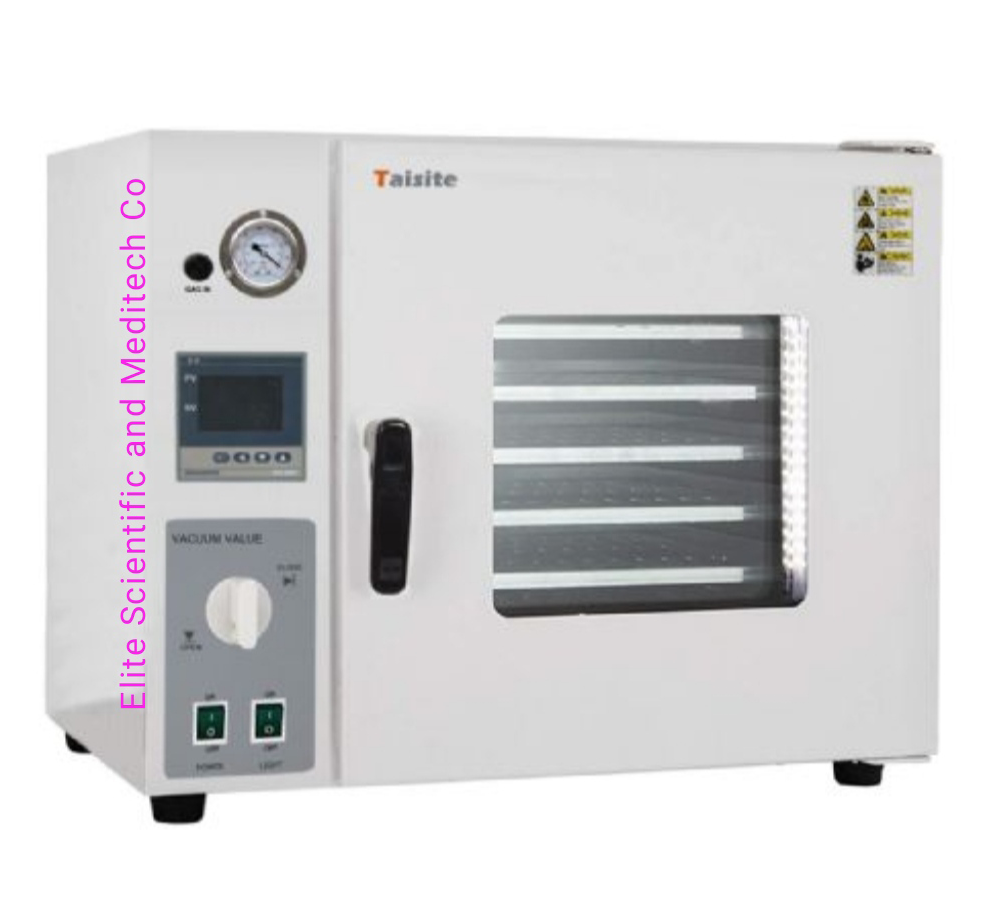

Vacuum drying oven _IVO series

0.00৳

#Vacuum drying oven _IVO series #IVD-25, #IVD-53, #IVD-91, #IVD-215

Features

Quick heating side walls and pan shelves.
Microcomputer LCD display with PID control, display in °F or ˚C
Accurate vacuum gauge
Stainless steel interior vacuum tubing maintains superior vacuum levels
Durable stainless steel vacuum & vent valves
Build in LED lights for better view of samples
Stainless steel interior for great durability and ease of maintenance
Build in check value prevents vacuum oil backflow
91L and 215L adopt independent shelf heater, each shelf with independent controller, to realize perfect temperature uniformity and fast heating rates

Specification

Model		IVD-25	IVD-53	IVD-91	IVD-215
Power	Voltage	220V		380V
	Power	500W	1400W	1500W	2100W
Material	Case	Steel with epoxy power coating
	Chamber	Stainless steel
Temperature	Heating method	4-sided		Shelf
	Controller	Low proportional gain, LCD PID control
	Temp. range	RT to 250
	Temp. accuracy	0.1C
	Temp. fluctuation	±1C
	Timer range	1-9999minutes
Vacuum	Max vacuum	≤133Pa (1mmHg)
	Vacuum gauge	0 to -0.1 Mpa (760mm Hg to 10mm Hg
	Door gasket	Silicone
Safety	Circuit breaker, overheat protector
Size	Capacity	25L	53L	91L	215L
	Chamber size	300x300x275	425x370x345	450x450x450	560x640x600
	Product size	580x450x450	720x525x535	615x590x635	1050x760x910
Shelf	Max. no.	4	5	5	3
	Standard no.	1	2	3	3
	Adjustable	Yes	Yes	Yes	Yes
