Vacuum Freeze Dryer, FDE & FDS Series, ESMC, Humanlab, Korea

0.00৳

Lyophilizer, FDE & FDS Series, ESMC, Humanlab, Korea
Vacuum freeze dryer, FDE & FDS Series, ESMC, Humanlab, Korea

Features

  • From drying and to defrosting, the comfortable function of
  • one touch operation make it easy to operate
  • It is equipped with an automated purge system to protect
  • Samples by preventing of counter -flow of vacuum pump oil.
  • At times of dissolving in vacuum to collect the sample in flask after freeze-drying,
  • it has been safely designed and manufactured to prevent contamination of
  • samples by inserting sterile air or nitrogen gas.
Features
  • Shell freezing of the flask rolling type for freezing at a temperature below eutectic point
  • The complete elimination of effervescence and dissolution of sample
  • Preliminary freezing of membrane form suppress hardening of
  • Sample’s surface, concentration and aging
  • During desiccation, the display of degree of vacuum must be
  • clear to recognize the sample temperature accurately
  • Supplier in Bangladesh Elite Scientific & Meditech Co.
  • For any queries please visit our website- www.elitetradebd.com
Specifications
Model FDE-0250 FDE-0350 FDI-0650 FDI-0950 FDI-1250
Capacity 2 Liter 3 Liter 6Liter 9 Liter 12 Liter
Chamber (DxH) 250x230mm 250x280mm 250x350mm
Refrigeration

system

Compressor 1/3 Hp ½ Hp
Temperature -50°C/option: -75 to -85°C
Vacuum Pump 100L/min 200L/min 400L/min
Defrosting system Heater system
Control & Display Microprocessor control & display LED display
Power source 220VAC, 50/60Hz
Overall (WxDxH)mm 550x550x420 600x600x880 700x720x880mm
Weight (Kg) 100 110 125 130 135

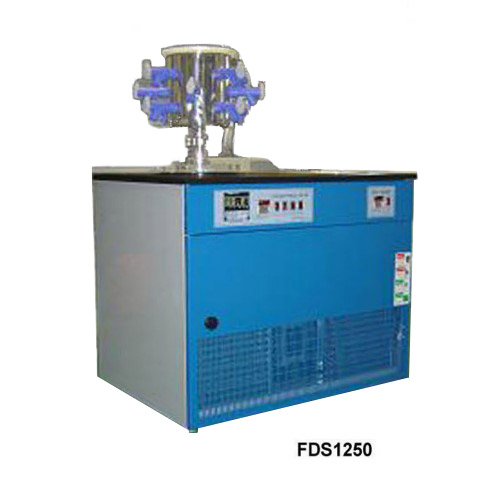

Model FDS-0660 FDS-0950 FDS-1250
Capacity 6 liter 9 liter 12 liter
Chamber (DxH) 250x280mm 250x350mm 250x400mm
Refrigeration system Compressor 1/3 Hp ½ Hp
Temperature -50°C/Option:-75 to -85°C
Vacuum Pump 200L/min 400L/min
Defrosting system Heated door defrosting
Control & Display Microprocessor control & digital display
Power source 220VAC, 50/60Hz
Shell freezing system Bath 176Wx325Bx150H (mm)
Compressor 1/3 Hp
Temperature -40°C
Flask 300ml, 600ml, 900mlx 1 each
Overall (WxDxH) 1000x725x880mm
Weight (Kg) 180 185 190

Images are reference only. Actual product may be different.
