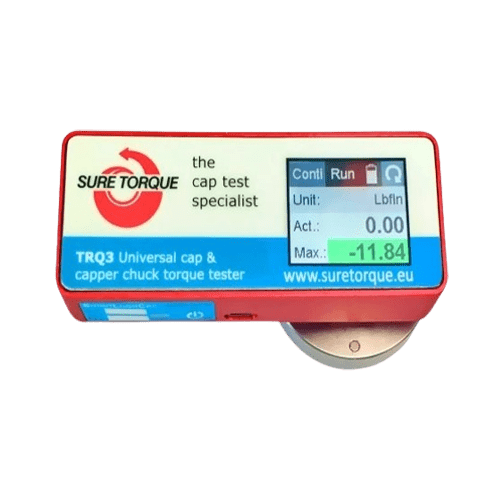

TRQ3 Cap Torque Tester, ESMC, Selectech/Terriss

0.00৳

TRQ3 Cap Torque Tester Price in Bangladesh

Brand: Selectech Terriss
Country of origin: Africa/USA

TRQ3 Cap Torque Tester in Bangladesh

Universal handheld torque tester for closure torque testing and capper head chuck torque testing on the capper machine. Can be ordered with various test fitments for the different closure types and applications:

Cap testing fitment – contains 2 parts:

1., A universal support that holds the cap fitments. Cap fitments are held by magnets for quick interchange.
2., Cap fitments: In any size up to D40 mm. with 12 serrations ((capable of any number of serrations that is a multipe of 12).
Over 40 mm cap diameter or for special closures custom cap adapters are available.
Cap fitments are easy to change without any tool, as they are held by magnets.

Neck thread fitments for any kind of thread type for testing the capper head chuck torque on capper machines.

martLoadCell units can be connected to any Android smartphone (or tablet) via Bluetooth (over Android 4.4). The SmartLoadCell application offers wide range of test modes and test settings. Results can be stored, reviewed and sent to pc.

Application

Industries: Beverage, Food, Pharmaceutical, Packaging
Areas: Laboratory, Production, Maintenance

Applications:

Closure torque tests – Release torque, bridge torque, incremental torque
Capper machine chuck torque testing (continuous mode) – Application torque.

Benefits

Small, handy
One-button-operation
Instant range indication with colours
Can be used both as stand alone and with bluetooth connection with a smartphone
High storing capacity on the smartphone
3 years warranty

Additional Information

INCLUDED ACCESSORIES	1 cap fitment support + 1 cap fitment OR 1 neck adapter
SMARTPHONE REQUIREMENT	1 GB RAM, 1 GHz Processor, 4 GB ROM
ANDROID VERSION	Android 4.4 or higher
MEASURING RANGE	-10Nm – +10 Nm (cca +/- 88.5 lbfIn)
UNITS OF MEASUREMENT	LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm, mV/V
DISPLAYED VALUES	Actual, Max1, (Max2), torque-time graph
ACCURACY	+/- 0,25% F.S.
SAFE OVERLOAD	120%
MAXIMUM MEASURING FREQUENCY	400 Hz (2.5 ms)
RANGE ANALYSIS	Yes – In range / under range / over range, with Over Range Alarm function
CAPABLE CLOSURE TYPES	Any kind of serrated twist cap
MAXIMUM SAMPLE SIZE	Any
CALIBRATION KIT	available
OPERATION TIME	6-8 hours
DC SUPPLY	Micro USB
BLUETOOTH RANGE	20-40 m on air
INCLUDED SOFTWARE	Android application
MEMORY	Thousands of results (phone memory) Maximum length of recordings: 5000 points
STORED DATA’S	Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date
RESISTANCE GRADE	IP 65
LANGUAGE	English
DIMENSIONS: FOOTPRINT / HEIGHT	113x44x20 mm
NET WEIGHT	0,25 kg
SHIPPING PACKAGING	Heavy duty waterproof case
SHIPPING DIMENSIONS	No
SHIPPING WEIGHT	No
COUNTRY OF MANUFACTURE	Hungary
