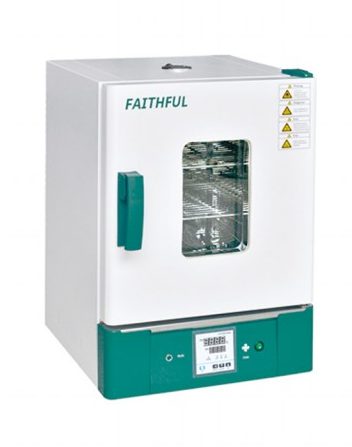

Drying oven and Incubator
$0.00
#Double function Drying oven and Incubator, 30L to 230L#Drying Oven/Incubator (Double Function)
Drying, baking, wax, heat treatment and bacterial culture in one chamber.
Characteristic:
- Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
- PID controller, with over-temperature protection function.
- With Oven/Incubator change switch, fan switch; and high temperature blast motor, LED digital display
- New anti-hot handle.
GP-BE series have the following characteristics other than the above functions
- LCD temperature controller. SSR to make sure the safety
- 4 grades speed fan, adjustable for different requirements.
- Over-temperature protection system.
- High precision digital independent temperature limiter.
Specification
| Model |
GP-30B |
GP-45B |
GP-65B |
GP-85B |
GP-125B |
GP-230B |
| GP-30BE |
GP-45BE |
GP-65BE |
GP-85BE |
GP-125BE |
GP-230BE |
| Cycle Mode |
Forced convection |
| Function |
Temp. range |
Incubator:RT+5-80℃ and Drying oven:80-300℃ |
| Temp. Resolution Ratio |
0.1℃ |
| Temp. Motion |
±1℃ |
| Temp. Uniformity |
Incubator:±1.0℃
Drying oven:±2.5% |
| Structure |
Inner Chamber |
Mirror Stainless Steel |
| Outer Shell |
Cold rolling steel electrostatic spraying exterior |
| Insulation layer |
High quality rock wool board(with CE) |
| Heater |
Stainless steel heater |
| Power rating |
0.8kW |
1.2kW |
1.6kW |
2.0kW |
2.3kW |
3.0kW |
| Exhaust hole |
φ28mm top(with function of test hole) |
| Controller |
Temp. control mode |
PID Two temperature section intelligent PID |
| Temp. setting mode |
Touch button setting |
Temp.
display mode |
B type: LED Digital Display |
| BE model: LCD Digital display |
| Timer |
0-9999min(with timing wait function) |
| Operation function |
Fixed temperature operation, timing function, auto stop. |
| Additional function |
B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| BE model: High precision digital independent temperature limiter, 4 grades &3 speed adjustable speed fan (GP230BE without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| Sensor |
Pt100 |
| Specification |
Inner Chamber size
(W*L*H) (mm) |
310*310
*310 |
350*350
*350 |
400*360
*450 |
450*420
*450 |
500*450
*550 |
600*500
*750 |
Exterior size
(W*L*H)(mm) |
460*510
*695 |
500*550
*735 |
550*550
*840 |
590*610
*830 |
636*680
*915 |
730*680
*1250 |
Packing size
(W*L*H)(mm) |
550*585
*845 |
590*625
*885 |
640*635
*985 |
690*695
*985 |
740*725
*1085 |
860*790
*1400 |
| Volume |
30L |
45L |
65L |
85L |
125L |
230L |
| Shelf number |
6 |
7 |
8 |
9 |
13 |
17 |
| Load per rack |
15kg |
| Shelf space |
35mm |
| Current rating |
AC220V/
3.6A |
AC220V/
5.5A |
AC220V/
7.2A |
AC220V/
9.0A |
AC220V/
10.5A |
AC220V/
13.6A |
| NW/GW (kg） |
33/37 |
37/43 |
44/49 |
50/56 |
60/66 |
94/120 |
| Accessory |
Shelf |
2 |
| Shelf frame |
4 |
| Optional accessories |
B model: Shelf; BE model: Shelf,RS485 interface, printer,
program temperature control device, remote control, wireless SMS alarm, USB data storage
|
